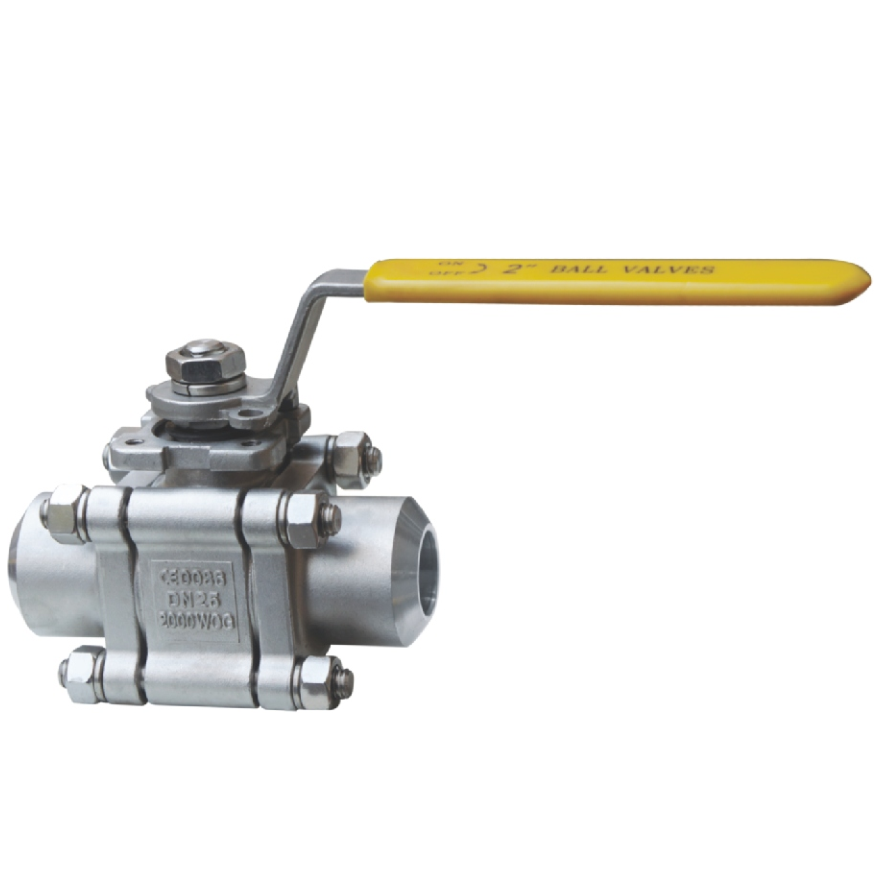

2000WOG stainless steel butt welded ball valves usually use stainless steel as the main material. Stainless steel is an alloy with strong corrosion resistance, suitable for industrial environments that require high corrosion resistance. Its main components include chromium, nickel, and other elements, which endow it with corrosion resistance and high temperature resistance. Stainless steel can also maintain its appearance and is not easily corroded, making it an ideal material for manufacturing valves. The 2000WOG stainless steel butt welded ball valve adopts a butt welding design, which allows the valve to be directly welded to the pipeline system, thereby forming a compact integrated structure. Welding valves have fewer connection points, reducing potential leakage and failure risks. This design feature is particularly useful in applications that require zero leakage, such as handling corrosive media or high-pressure fluids.
standard specification
1.设计和生产:GB/T 12237
2.阀体厚度: GB/T 12224
3.NPT螺纹连接:ASME B1.20.1;
G螺纹连接: GB/T 12716;RC螺纹连接: GB/T7306.2
4.承插焊:ASME B16.11
5.对焊:ASME B16.25、ASME B36.10M6.检验和测试:API598
design code
1.手柄带锁装置，防止错误操作，更安全、可靠;
2.防吹出阀杆;
3.操作平台带有防盗锁装置，可以更好的预防误操作4.操作平台连接手柄，方便的操作;
5.根据API607标准，防火设计;
6.ISO5211:2000 平台操作(上法兰);
7.阀杆和球体之间有防静电装置;
8.连接端:NPT螺纹、承插焊、对焊(阀体可加长)。
The working principle of 2000WOG stainless steel butt welded ball valve is relatively simple, but efficient. There is a sphere inside the valve, usually with a hole or channel, which can be rotated to control the flow of fluid. When the holes of the sphere align with the pipeline, fluid can flow freely. On the contrary, when the sphere rotates to the closed position, the channel will be blocked, stopping the flow of fluid. This design allows the valve to quickly respond to opening and closing commands while providing precise flow control.
多样性的需求
2000WOG不锈钢对焊接球阀在多个工业领域中得到广泛应用，包括但不限于以下领域：
- 化工工业：用于控制化学品、腐蚀性介质和溶剂的流动。
- 石油和天然气工业：用于管道、油井和油气处理设备中的流体控制。
- 食品和制药工业：在食品生产和制药制造中要求高卫生标准的流体控制。
- 污水处理：用于废水处理、排水系统和供水系统的流体控制。
- 电力工业：在锅炉、冷却系统和其他电力设备中需要高温高压流体控制。
2000WOG不锈钢对焊接球阀代表了工业流体控制的卓越解决方案。其不锈钢材料、对焊接设计和工作原理使其成为各种应用的首选。这些阀门在多个工业应用中发挥着关键作用，帮助确保工业系统的安全和效率。
总的来说，2000WOG不锈钢对焊接球阀是高性能、高可靠性的工业阀门，无论是在化工、石油、食品制造、污水处理还是电力工业等各种应用中，都能够满足严苛的流体控制需求。其材料和设计使其成为工程师和运营人员信赖的阀门类型，有助于确保工业生产过程的正常运行。
