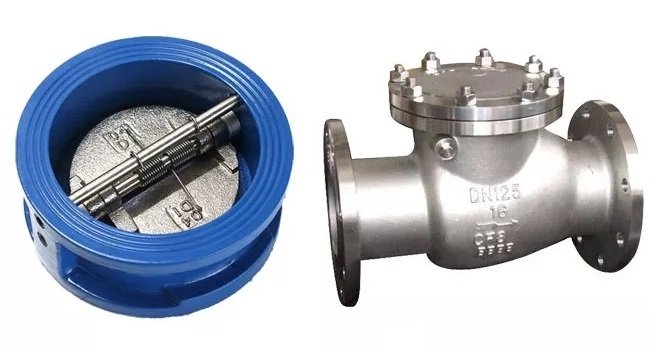

Wafer and flanged check valves cannot be ranked by connection type alone. Pressure capability comes from the specific body, materials, rating and temperature limits. Compare the actual disc design, flow range, pressure loss, closing behaviour and installation space before choosing either connection.

Closing behaviour: a spring-assisted short-stroke disc can respond differently from a swing disc. Water hammer depends on flow deceleration, reverse velocity at closure and the piping system. A wafer or flanged connection alone does not establish a non-slam design.

Size and weight: wafer bodies often have a shorter face-to-face dimension than conventional flanged swing designs. Compare actual drawings, mass and disc-clearance requirements; compactness is a design characteristic, not a guarantee for every valve with that connection.

Pressure loss: use the selected valve’s flow coefficient or tested pressure-loss curve over the required flow range. Disc opening and flow stability matter, particularly at low flow. Fixed resistance coefficients cannot be assigned to all wafer or all flanged check valves, and diameter alone does not determine their trend.

Installation: follow the permitted orientation, flow arrow and disc-clearance requirements for the actual design. Vertical upward and downward flow are not interchangeable. Assess pipe support and valve loads from the assembly drawing; a lightweight wafer body does not by itself eliminate support requirements.

Opening pressure: distinguish the differential pressure that first lifts the disc from the flow and differential pressure needed for stable full opening. Spring load, moving-part weight, orientation and geometry affect these values. Neither connection type always opens at the lower differential pressure.

Reliability: select for minimum, normal and maximum flow, pressure transients and fluid cleanliness. Low-flow chatter, debris on the seat or repeated slam can damage different check-valve constructions. Compare closing performance and maintenance access rather than assuming that every flanged valve suffers greater water hammer.

For selection, provide fluid, temperature, pressure, flow range, pipe direction, connection standard and pump operating conditions. Then compare the matching check-valve design and rating, including space for installation and future service.

Tekron & Trekre

Valve Knowledge

01 What is the low leakage test? What are the differences between ISO 15848 and API 624?
The low leakage test focuses on the leakage emissions from parts such as the valve stem packing, and is different from the purpose of the valve seat sealing test. ISO 15848-1 stipulates the type tests and grades for the leakage emissions of industrial valves; API 624 stipulates the type tests for valves with graphite packing and moving valve stems. The applicable scope, circulation conditions, measurement methods and acceptance criteria of the two are different. The project should clearly specify the adopted standard and version.
