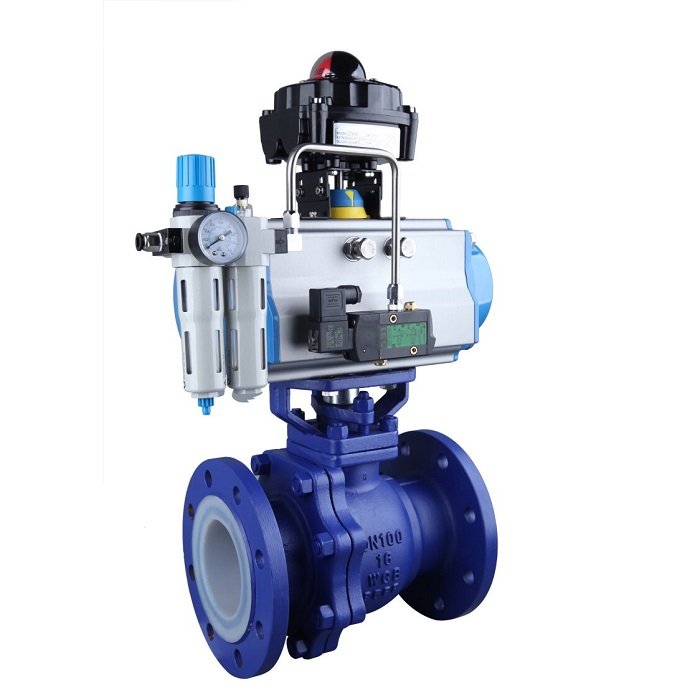

Structural principle of pneumatic ball valve

Pneumatic ball valves have a compact structure and are easy to operate and maintain. Select all wetted materials and the valve rating for the actual fluid and operating conditions. Oxygen, hydrogen peroxide and flammable-gas services require their own material, cleanliness and system-safety assessment; pneumatic actuation alone does not establish suitability. The ball valve body can be integral or modular, and is opened and closed by the rotation of the valve core driven by a pneumatic actuator.

A pneumatic actuator turns the stem and ball about the stem axis. Opening or closing the bore changes the flow path. Ball valves and plug valves are both rotary valves, but their closure members have different shapes.

Pneumatic ball valves are mainly used in pipelines to cut off, distribute, and change the direction of medium flow.

Operating characteristics and selection considerations:

Pressure loss depends on actual bore, internal geometry, flow and fluid properties; it is not automatically identical to an equal length of pipe. Simple structure, small size, and light weight. Good sealing performance. Plastic is widely used as a sealing surface material for ball valves, with excellent sealing performance, but vacuum suitability must be established for the actual seat, seals and valve construction. Easy to operate, quick opening and closing, with a 90 degree rotation from fully open to fully closed, making it convenient for remote control. Serviceability depends on body construction and seat retention. Internal maintenance requires qualified personnel, process isolation, depressurisation and control of stored pneumatic or spring energy before disassembly. The ball and seat can still be exposed to fluid, trapped material and differential pressure at different positions. Corrosion and wear depend on the actual wetted materials, sealing geometry and service, not simply whether the valve is open or closed. Available sizes and permissible pressure or vacuum conditions belong to the specific series and configuration; a pneumatic drive does not extend the valve pressure rating. The actuator uses a specified compressed-air supply. Confirm its operating-pressure limits, required full-stroke torque and accessory requirements separately from process pressure. Actuator exhaust is different from process-fluid leakage. Process leakage must not be vented freely; it requires the approved isolation, containment and safe-maintenance procedure for the actual fluid. Choose manual, worm-gear or pneumatic operation from actual torque, operating frequency, available energy and the permitted stem load. There is no universal DN300 dividing line between these drive methods.

Tekron & Trekre

Valve Knowledge

01 What is the low leakage test? What are the differences between ISO 15848 and API 624?
The low leakage test focuses on the leakage emissions from parts such as the valve stem packing, and is different from the purpose of the valve seat sealing test. ISO 15848-1 stipulates the type tests and grades for the leakage emissions of industrial valves; API 624 stipulates the type tests for valves with graphite packing and moving valve stems. The applicable scope, circulation conditions, measurement methods and acceptance criteria of the two are different. The project should clearly specify the adopted standard and version.
