Product identity and material verification

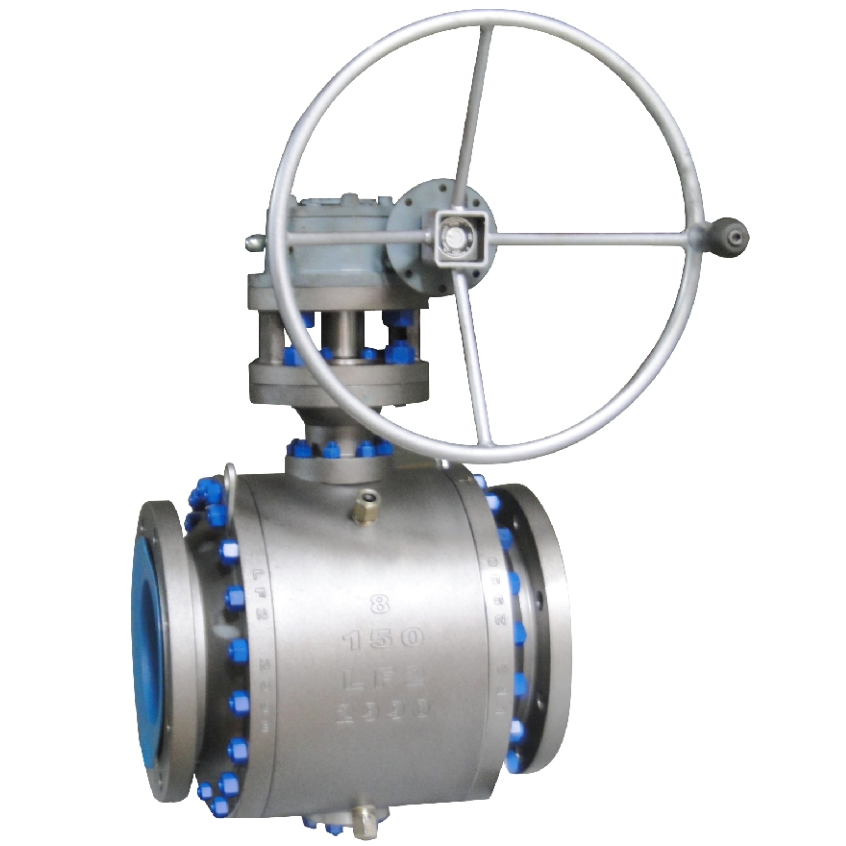

This catalogue item is a flanged ball valve identified with an LF2 body and worm-gear operation. Confirm the material designation and condition on the offered drawing and material certificate. LF2 body identification does not establish the materials of the ball, stem, seats, seals or packing; LCB must not be treated as another spelling of LF2.
Low-temperature service must be defined
State the fluid and phase, minimum design and operating temperatures, pressure and thermal cycling. Request the limits and qualification of the complete assembly for the intended cryogenic medium. LF2 identifies a material, not suitability for every cryogenic service; oxygen duty additionally requires suitable design and documented cleanliness controls.
Operating and cavity-pressure review
The gearbox turns the ball for opening and closing; it does not establish precise regulating performance. For liquid trapped in a closed cavity, ask the supplier to identify the actual pressure-relief arrangement, any installation-direction restrictions and the associated instructions. Do not improvise relief modifications from a generic webpage. Installation and maintenance require the approved isolation and energy-control procedures.
Frequently asked questions
Does LF2 mean the valve can be used with liquid nitrogen or LNG?
No application or minimum service temperature is established by the material label alone. Obtain the offered assembly limits, material evidence and service-specific qualification.
Can you treat LF2 and LCB as interchangeable body materials?
No. Confirm the exact designation, manufacturing route and material certificate for the supplied body instead of substituting names.
What should I ask about a closed liquid-filled cavity?
Request the actual cavity-pressure protection design, pressure direction and installation instructions for the ordered valve. Agree this before supply.
General technical references—not product certificates: ASTM low-temperature forging specification scope · Oxygen-service design and cleanliness considerations
Prepare a quotation for this valve
For low-temperature selection, describe the coldest credible service condition and request evidence for the complete assembly.
- Thermal duty
Fluid/phase, normal and minimum design temperature, thermal cycling and operating pressure.
- Materials and seals
Body material designation, trim, seat/packing specification and required traceability.
- Installation review
Flange details, operator access, insulation arrangement and cavity-pressure requirements.
Documents to agree before supply
- Assembly drawing and material certificate requirements
- Documented temperature/pressure limits and agreed low-temperature test scope
- Cavity-protection and installation instructions
Ask which documents are available for the offered configuration and agree their scope before supply. A catalogue picture is not a certified drawing or test report.
Download a buyer enquiry checklist
Download this valve enquiry checklist (TXT). This is a fill-in purchasing worksheet, not a technical datasheet. Unknown values can be left blank.
